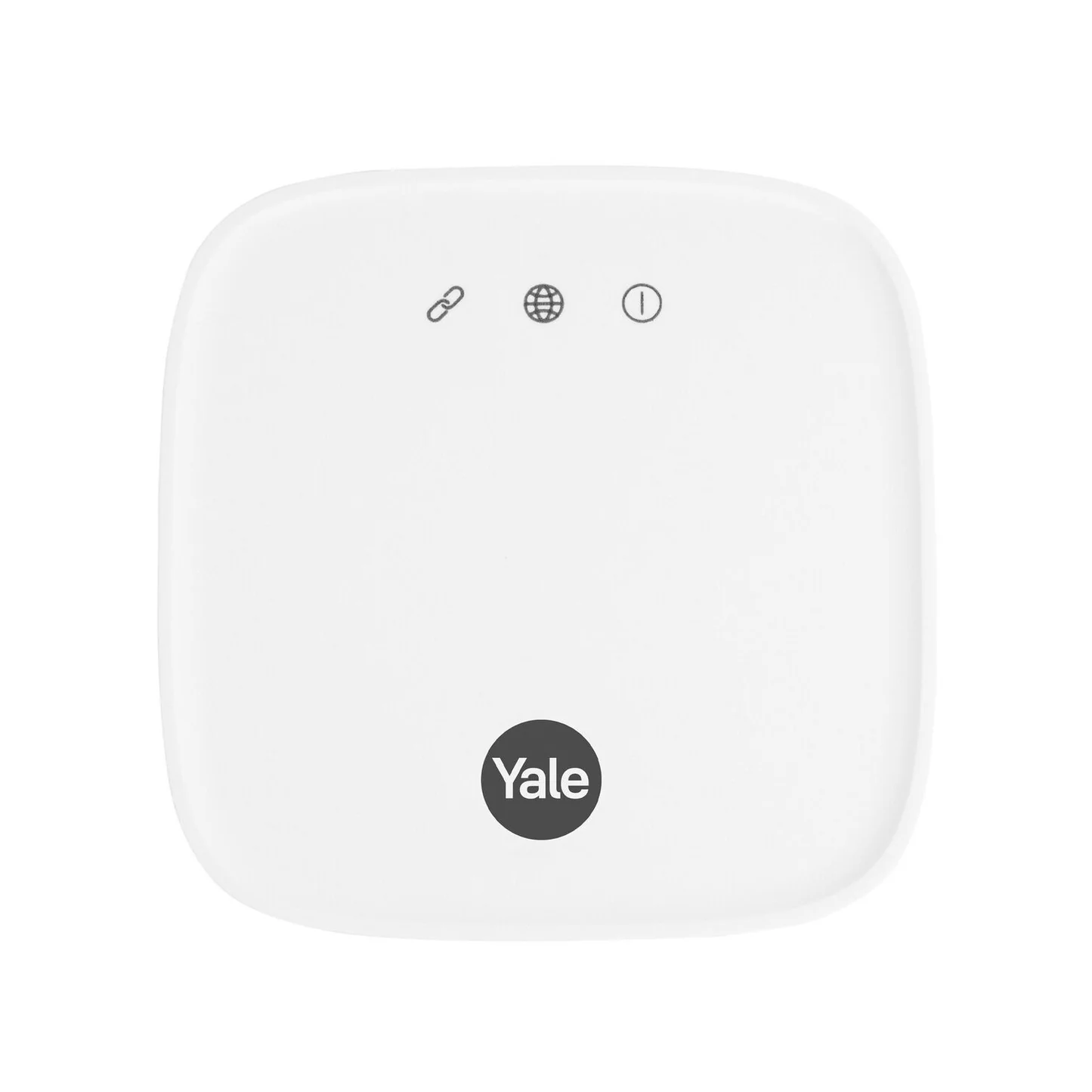

Yale Connect Plus Hub 2
YAR/SWAA/HUB/-I-D
Connect Plus Hub is commonly used in advanced automation systems to link and synchronize multiple actuators.
Connect Plus Hub Function – facilitates the connection and coordination of multiple actuators within an automated system.
- The Yale Connect Plus Hub 2 allows you to access multiple Yale smart home locks and window actuators from wherever you are.
- Monitor the status of your home, lock or unlock and more using your Yale Home App from anywhere.
- The Yale Connect Plus Hub 2 allows your Yale smart home devices to work with Amazon Alexa, Google Home and more.
Features:
- Monitor the status of your home, lock or unlock and more using the Yale Home App
- Grow your Yale Home Automation: Supports up to 16 Bluetooth and 30 Zigbee Yale smart home devices
- Coverage for the Entire home*: Designed to support Yale smart home devices throughout your home, freeing up power points by having multiple devices connected to the one Hub
- Integrate with voice assistants and smart home ecosystems including Amazon Alexa and Google Assistant for hands-free control
- Compatible with Yale Assure locks, Yale YDM mortice locks, Yale Unity locks, Yale Smartlatch2, Yale Smart safes and Yale Aeron window controllers
- QR code for quick access to Yale Home App
- Can be wall mounted
- Supplied in retail box
LED Indicator Functions:
- Power LED
- Solid LED = Hub is powered on
- Slow flash LED = Hub is searching sub-devices
- No LED = Hub is powered off
- Wi-Fi Connection
- Solid LED = Hub is connected to Wi-Fi router
- Slow flash LED = Hub is in Wi-Fi connect mode
- Fast flash LED = Firmware is being updated
- No LED = Hub can’t connect to Wi-Fi router
- Server Connection
- Solid LED = Hub is connected to Yale Home Server but there is no data being communicated at the time
- Slow flash LED = Hub is communicating with Yale Home Server
- No LED = Hub can’t connect to Yale Home Server
Specifications
- Material: Plastic
- Body Size: 80mm x 80mm x 30mm
- Net Weight: 65g (Hub alone)
- WiFi: WiFi 802.11b/g/n 2.4GHz networks; please make sure your Wi-Fi router broadcasts a 2.4 GHz network
- Bluetooth: BLE 5.0 2.4GHz
- Zigbee: Zigbee 3.0 2.4GHz
- Power Adapter Included: USB-C / 5VDC, 1A
- Basic Function: Hub/Bridge for BLE and Zigbee multi-devices
- Certification: FCC/IC/BTSig/CE/RCM/RoHS
- Finish: White
Note:
- Indoor use only
- if all 3 LEDs blink consecutively then the Hub is currently undergoing a factory reset
- Please check if your specific Yale smart home device works with Alexa or Google Home on the Yale website before purchase.
- Home size, layout and building material can impact performance. Medium and larger sized home may require additional devices for full coverage.
